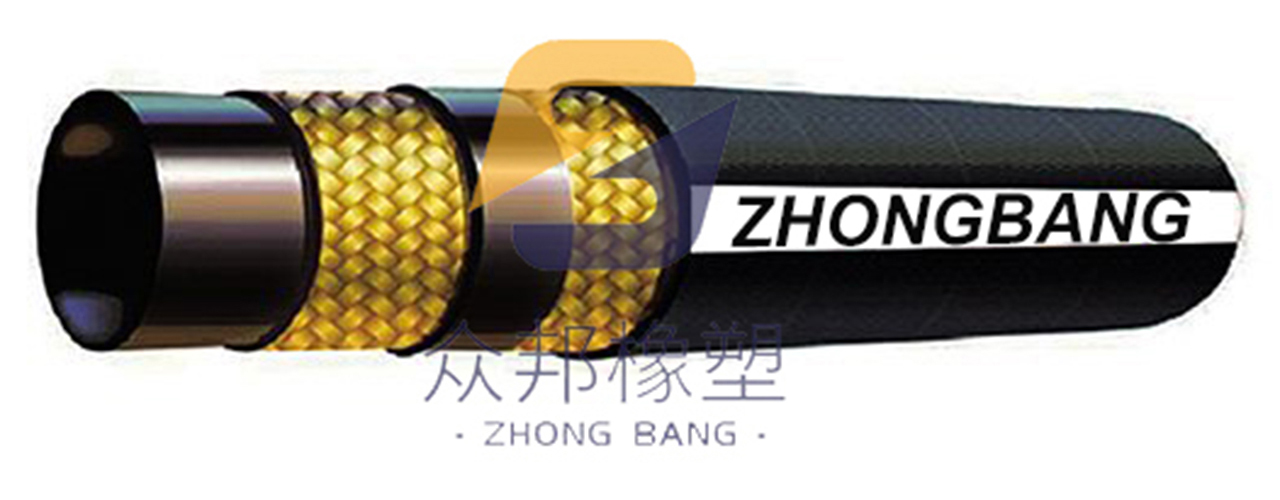

Tube: Black,Oil resistant synthetic rubber
Reinforcement: Two layer of steel wire braided
Cover: Oil and weather resistant synthetic rubber Surface:Wrapped surface,smooth surface
Use: Petroleum based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more
Temperature range: -40°C to +100°C(-104℉ to 212℉)
| Item Code | Size | ID mm | OD mm | WP | BP | B.R | Weight | ||||
| mm | Inch | Min | Max | MAX | BAR | PSI | BAR | mm | Kg/m | ||
| R16-06 | 6.3 | 1/4″ | 6.2 | 7 | 14.5 | 400 | 5800 | 1600 | 50 | 0.27 | |
| R16-08 | 8 | 5/16″ | 7.7 | 8.5 | 15.7 | 350 | 5075 | 1400 | 55 | 0.35 | |
| R16-10 | 10 | 3/8″ | 9.3 | 10.1 | 18.8 | 330 | 4785 | 1320 | 65 | 0.42 | |
| R16-13 | 12.5 | 1/2″ | 12.3 | 13.5 | 22 | 275 | 3988 | 1100 | 90 | 0.52 | |
| R16-16 | 16 | 5/8″ | 15.5 | 16.7 | 25.4 | 250 | 3625 | 1000 | 100 | 0.63 | |
| R16-19 | 19 | 3/4″ | 18.6 | 19.8 | 29 | 215 | 3118 | 860 | 120 | 0.81 | |
| R16-25 | 25 | 1″ | 25 | 26.4 | 36.6 | 165 | 2393 | 660 | 150 | 1.2 | |
| R16-32 | 31.8 | 1-1/4″ | 31.4 | 33 | 44.3 | 113 | 1639 | 450 | 210 | 1.7 | |
