SAE 100 R2AT/EN 853 2SN – RUBBER&PLASTIC PVC Hose

R22SN - SAE 100 R2AT/EN 853 2SN

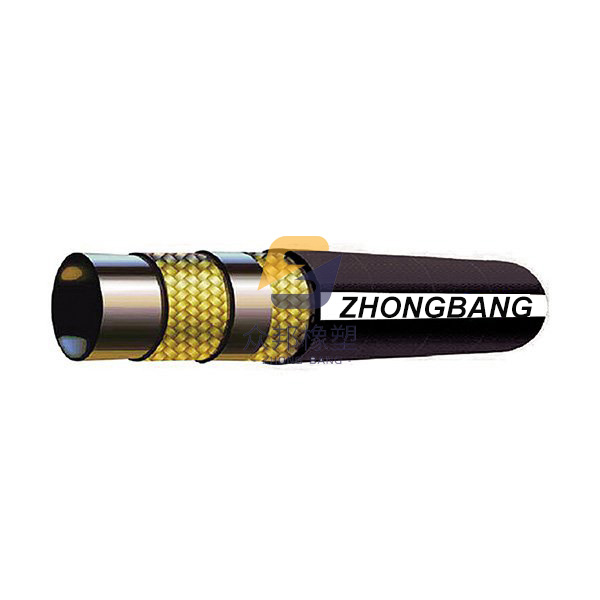

HYDRAULIC HOSE SAE 100 R2AT/EN 853 2SN

Tube:Black, oil resistant synthetic nitrile rubber

Reinforcement: 2Ply high tensile steel wire braided

Cover: Black, Abrasion and weather resistant synthetic rubber

Surface: Wrapped surface,smooth surface

Use:Petroleum based hydraulic fluid,gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Temperature range: -40℃ to +100℃（-40℉ to +212℉）

Item Code	Size		ID mm		OD mm		WP		BP	B.R	Weight
Item Code	mm	Inch	Min	Max	Max		Mpa	PSI	Mpa	mm	Kg/m
R2-05	5	3/16″	4.6	5.4	14.1		35	5250	140	90	0.32
R2-06	6.3	1/4″	6.2	7.0	15.7		35	5250	140	100	0.36
R2-08	8	5/16″	7.7	8.5	17.3		29.7	4455	119	115	0.45
R2-10	10	3/8″	9.3	10.1	19.7		28	4200	112	125	0.54
R2-12	12.5	1/2″	12.3	13.5	23.1		24.5	3675	98	180	0.68
R2-16	16	5/8″	15.5	16.7	26.3		19.2	2880	77	205	0.8
R2-19	19	3/4″	18.6	19.8	30.2		15.7	2355	63	240	0.94
R2-25	25	1″	25.0	26.4	38.9		14	2100	56	300	1.35
R2-32	31.8	1-1/4″	31.4	33.0	49.6		11.3	1695	45.5	420	2.15
R2-38	38	1-1/2″	37.7	39.3	56.0		8.7	1305	43.5	500	2.65
R2-51	51	2″	31.4	52.0	68.6		7.8	1170	31.5	630	3.42
Item Code	Size		ID mm		OD mm		WP		BP	B.R	Weight
Item Code	mm	Inch	Min	Max	Max		Mpa	PSI	Mpa	mm	Kg/m
2SN-05	5	3/16″	4.6	5.4	14.1		41.5	6225	165	90	0.32
2SN-06	6.3	1/4″	6.2	7.0	15.7		40	6000	160	100	0.36
2SN-08	8	5/16″	7.7	8.5	17.3		35	5250	140	115	0.45
2SN-10	10	3/8″	9.3	10.1	19.7		33	4950	132	125	0.54
2SN-12	12.5	1/2″	12.3	13.5	23.1		27.5	4125	110	180	0.68
2SN-16	16	5/8″	15.5	16.7	26.3		25	3750	100	205	0.8
2SN-19	19	3/4″	18.6	19.8	30.2		21.5	3225	85	240	0.94
2SN-25	25	1″	25.0	26.4	38.9		16.5	2475	65	300	1.35
2SN-32	31.8	1-1/4″	31.4	33.0	49.6		12.5	1875	50	420	2.15
2SN-38	38	1-1/2″	37.7	39.3	56.0		9	1350	36	500	2.65
2SN-51	51	2″	31.4	52.0	68.6		8	1200	32	630	3.42

←
