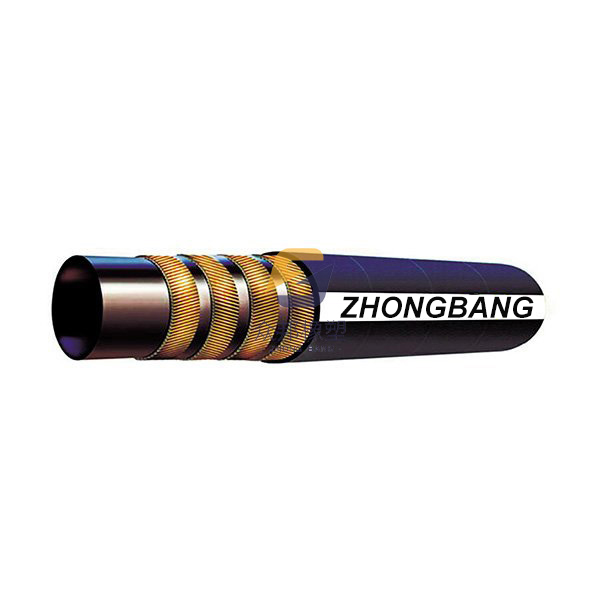

Tube:Black, oil resistant synthetic nitrile rubber
Reinforcement: 4Ply high tensile steel wire spiral
Cover: Wrapped surface
Use:Petroleum based hydraulic fluid,gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Temperature range: -40℃ to +100℃（-40℉ to +212℉）
| Item Code | Size | ID mm | OD mm | WP | BP | B.R | Weight | ||||
| mm | Inch | Min | Max | Min | Max | BAR | PSI | BAR | mm | Kg/m | |
| 4SP-06 | 6.3 | 1/4″ | 6.2 | 7 | 17.1 | 18.7 | 450 | 6525 | 1800 | 150 | 0.60 |
| 4SP-10 | 10 | 3/8″ | 9.3 | 10.1 | 20.6 | 22.2 | 445 | 6452.5 | 1780 | 180 | 0.76 |
| 4SP-13 | 12.5 | 1/2″ | 12.3 | 13.5 | 23.8 | 25.4 | 415 | 6017.5 | 1660 | 230 | 0.90 |
| 4SP-16 | 16 | 5/8″ | 15.5 | 16.7 | 27.4 | 29 | 350 | 5075 | 1400 | 250 | 1.10 |
| 4SP19 | 19 | 3/4″ | 18.6 | 19.8 | 31.4 | 33 | 350 | 5075 | 1400 | 300 | 1.48 |
| 4SP-25 | 25 | 1″ | 25 | 26.4 | 38.5 | 40.9 | 280 | 4060 | 1120 | 340 | 2.02 |
| 4SP-32 | 31.8 | 1-1/4″ | 31.4 | 33 | 49.2 | 52.4 | 210 | 3045 | 840 | 460 | 3.00 |
| 4SP-38 | 38 | 1-1/2″ | 37.7 | 39.3 | 55.6 | 58.8 | 185 | 2682.5 | 740 | 560 | 3.55 |
| 4SP-51 | 51 | 2″ | 50.4 | 52 | 68.2 | 71.4 | 165 | 2392.5 | 660 | 660 | 4.90 |
| Item Code | Size | ID mm | OD mm | WP | BP | B.R | Weight | ||||
| mm | Inch | Min | Max | Min | Max | BAR | PSI | BAR | mm | Kg/m | |
| 4SH19 | 19 | 3/4″ | 18.6 | 19.8 | 31.4 | 33 | 420 | 6090 | 1680 | 280 | 1.64 |
| 4SH-25 | 25 | 1″ | 25 | 26.4 | 37.5 | 39.9 | 380 | 5510 | 1520 | 340 | 2.03 |
| 4SH-32 | 31.8 | 1-1/4″ | 31.4 | 33 | 43.9 | 47.1 | 325 | 4712.5 | 1300 | 460 | 2.45 |
| 4SH-38 | 38 | 1-1/2″ | 37.7 | 39.3 | 51.9 | 55.1 | 290 | 4205 | 1160 | 560 | 3.35 |
| 4SH-51 | 51 | 2″ | 50.4 | 52 | 66.5 | 69.7 | 250 | 3625 | 1000 | 700 | 4.50 |
